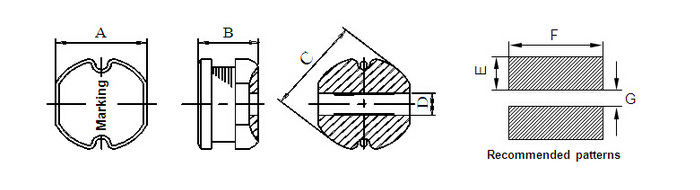

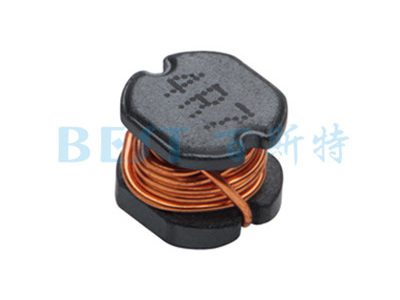

CD53貼片功率電感封裝尺寸圖
| TYPE(規格型號) | A | B | C | D | E | F | G |
| CD32 | 3.0±0.3 | 2.1±0.3 | 3.5±0.3 | 1.0 | 1.6 | 3.5 | 0.8 |
| CD43 | 4.0±0.3 | 3.2±0.3 | 4.5±0.3 | 1.4 | 1.75 | 4.5 | 1.2 |
| CD53 | 5.2±0.3 | 3.0±0.3 | 5.8±0.3 | 2.1 | 2.15 | 5.5 | 1.7 |
| CD54 | 5.2±0.3 | 4.5±0.3 | 5.8±0.3 | 2.1 | 2.15 | 5.5 | 1.7 |
| CD75 | 7.0±0.3 | 5.0±0.3 | 7.8±0.3 | 2.5 | 3.0 | 7.5 | 2.0 |
?
CD53貼片功率電感參數
| 型號 | 電感值(μH) | DCR (Max)直流電阻(Ω) | IDC (Max)額定電流(A)? ? | ?測試頻率(kHz)?? |
| CD53-1.5uH/M | 1.5 | 0.035 | 3.10 | 100 |
| CD53-2.2uH/M | 2.2 | 0.040 | 3.00 | 100 |
| CD53-2.7uH/M | 2.7 | 0.047 | 2.90 | 100 |
| CD53-3.3uH/M | 3.3 | 0.055 | 2.80 | 100 |
| CD53-3.9uH/M | 3.9 | 0.055 | 2.70 | 100 |
| CD53-4.7uH/M | 4.7 | 0.070 | 2.60 | 100 |
| CD53-5.6uH/M | 5.6 | 0.080 | 2.50 | 100 |
| CD53-6.8uH/M | 6.8 | 0.090 | 2.40 | 100 |
| CD53-8.2uH/M | 8.2 | 0.110 | 2.30 | 100 |
| CD53-10uH/M | 10 | 0.130 | 2.20 | 100 |
| CD53-15uH/M | 15 | 0.180 | 2.00 | 100 |
| CD53-22uH/M | 22 | 0.260 | 1.60 | 100 |
| CD53-27uH/M | 27 | 0.280 | 1.40 | 100 |
| CD53-33uH/M | 33 | 0.380 | 1.30 | 100 |
| CD53-39uH/M | 39 | 0.440 | 1.20 | 100 |
| CD53-47uH/M | 47 | 0.490 | 0.90 | 100 |
| CD53-56uH/M | 56 | 0.550 | 0.85 | 100 |
| CD53-68uH/M | 68 | 0.680 | 0.80 | 100 |
| CD53-82uH/M | 82 | 0.860 | 0.80 | 100 |
| CD53-100uH/M | 100 | 0.960 | 0.70 | 100 |
| CD53-220uH/M | 220 | 2.100 | 0.30 | 100 |
| CD53-270uH/M | 270 | 2.500 | 0.28 | 100 |
| CD53-330uH/M | 330 | 4.000 | 0.25 | 100 |
| CD53-680uH/M | 680 | 8.000 | 0.18 | 100 |
| CD53-1.0mH/M | 1000 | 11.500 | 0.14 | 100 |
| ? | ? | ? | ? | ? |
| Remark:? ●? □ Tolerance: N:±30% , M:±20% , ? ?K:±10% | ? | ? | ||
| ?????????????? ●? Inductance Tested at ? ?100kHz,0.25Vrms (20℃) | ? | ? | ||
| ?????????????? ●? IDC: DC current at ? ?which the inductance drops approximate 20% from its value without current | ||||
| ?????????????? ●? Operating? Temperature : -25℃ ~ +105℃ | ? | ? | ||
| ?????????????? ●? Measure Equipment: | ? | ? | ? | |
| ??????????????????? INDUCTANCE : Agilent ? ?HP-4284A , HP-4285A | ? | ? | ||
| ??????????????????? IDC : Agilent ? ?HP-4284A+HP-42841A | ? | ? | ? | |
| ??????????????????? DCR : CHEN HWA 502A | ? | ? | ? | |
